Fig. 10
Download original image

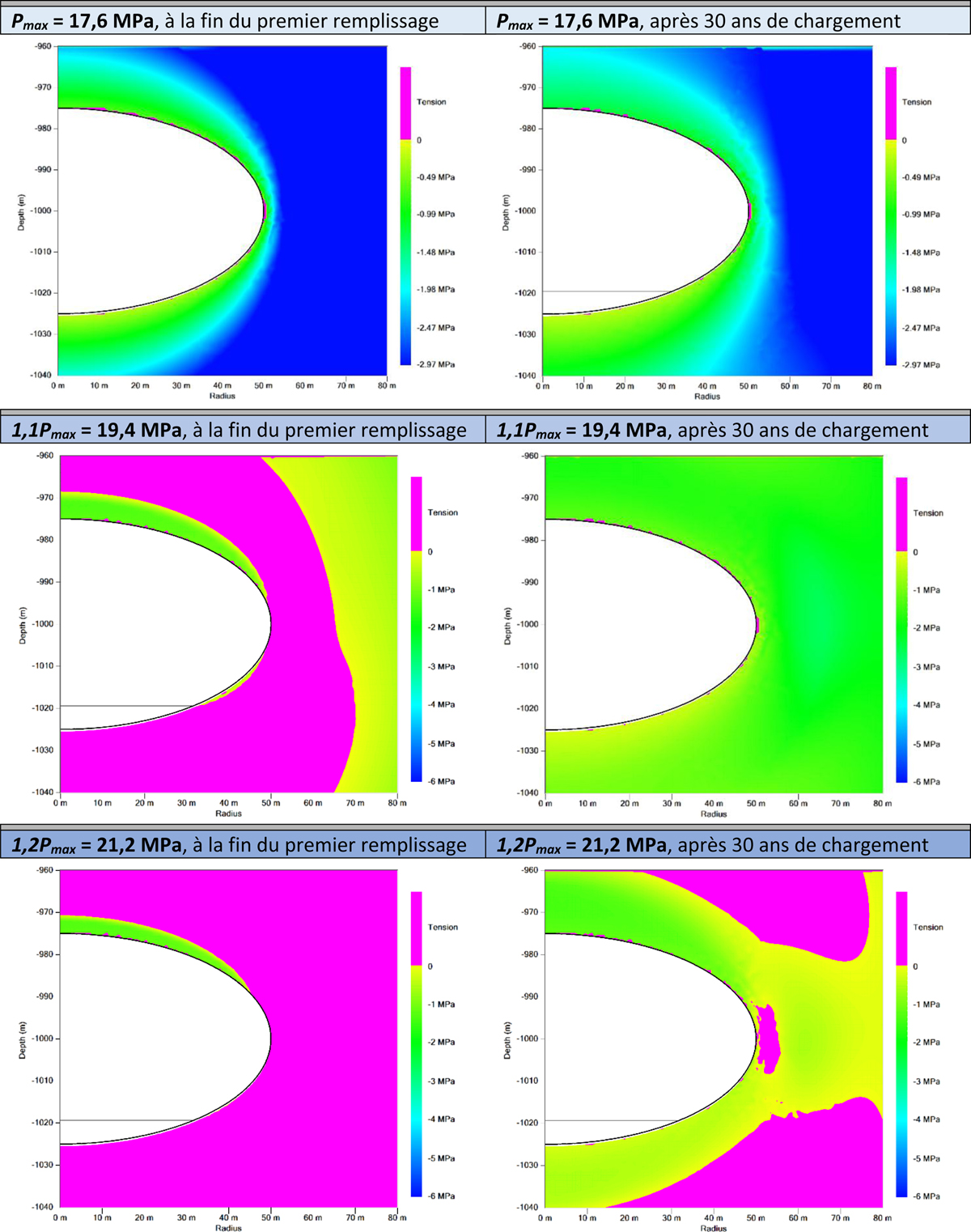

Isovaleurs de contrainte effective après le premier remplissage et après 30 ans de chargement à pression maximale en cavité.
Contour plots of effective stress after the debrining and after 30 years of loading around cavern maximum pressure.
